Sundown Audio

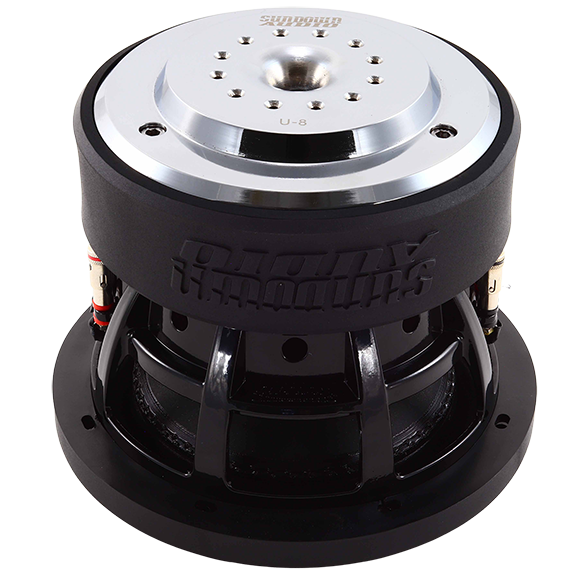

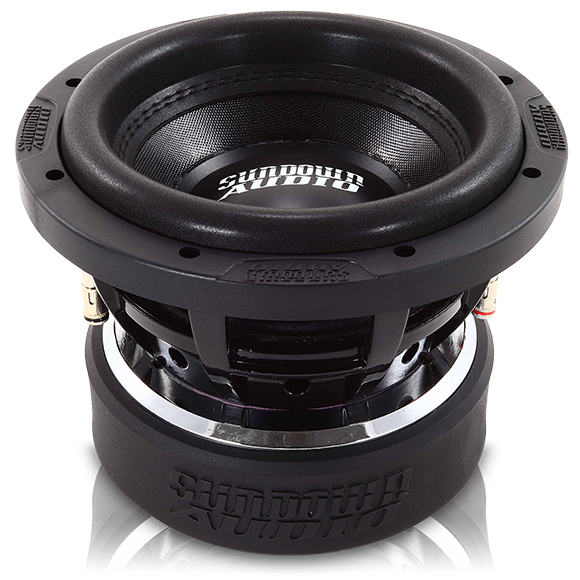

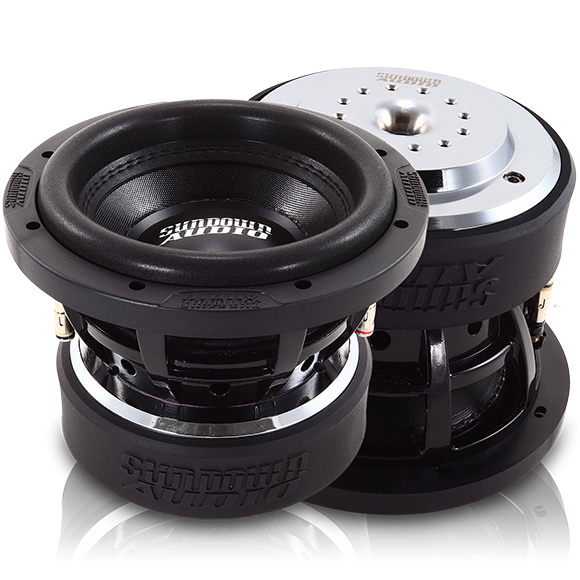

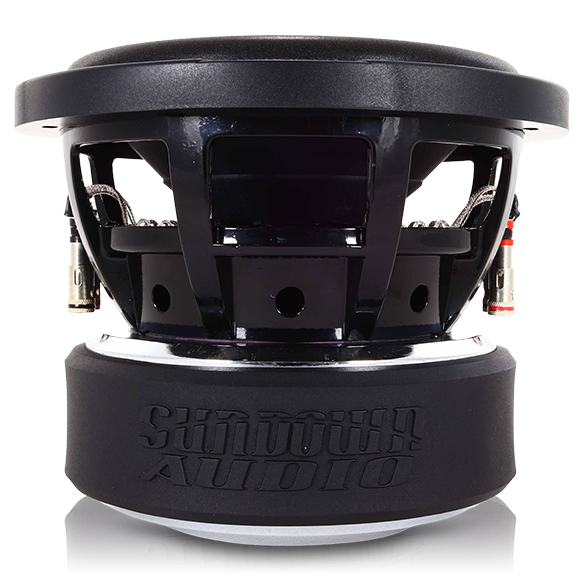

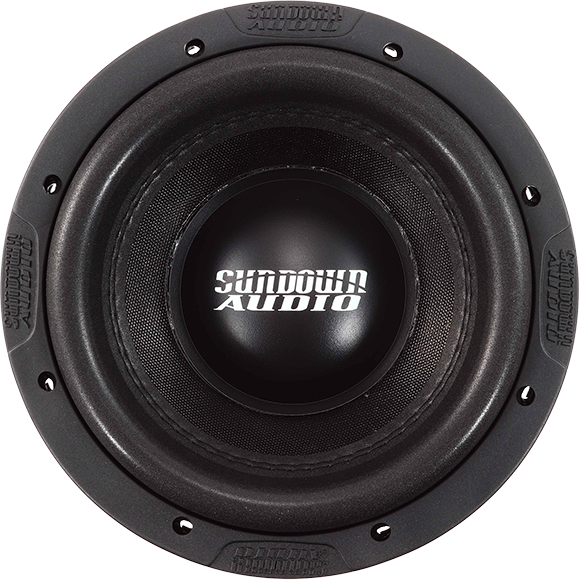

U-Series 8" v.1 Subwoofer
In stock
Product details −
- 750W Watts RMS / 1500 Watts Peak
- Dual 2 or 4 ohm voice coils
- Optimized for small ported enclosures
- Aluminum 2.25” voice coil former for superior heat dissipation
- High-temperature copper voice coil
- Double stitched surround
- Heavy-duty cast basket
- Spring-loaded terminals accept up to 8-gauge wire
- Stitched-on heavy-duty tinsel leads
- Solid pole with vent channels and aluminum shorting ring cap
- Rear gap-venting
- Top-Plate Cooling Channels
The U-8 can be thought of as an SA-8 v3 on performance boosters. Everything there is to love about the SA-8 v3 just with more power handling, more x-max, and more output potential.
The specially designed motor is mated to a custom tooled and patented (US Patent D691595) frame which allows for a larger spider and superior clearances to nearly any other 8" woofer on the market today. The U-8 features a full 18mm of one-way linear excursion and mechanical capacity in excess of double the linear limits (around 2.5” peak-to-peak) to ensure that mechanical failures are nearly impossible. As with the SA-8 v.3 it features a surround that mimics the geometry of our large Mega-Roll v.2 surrounds for incredible linearity.
