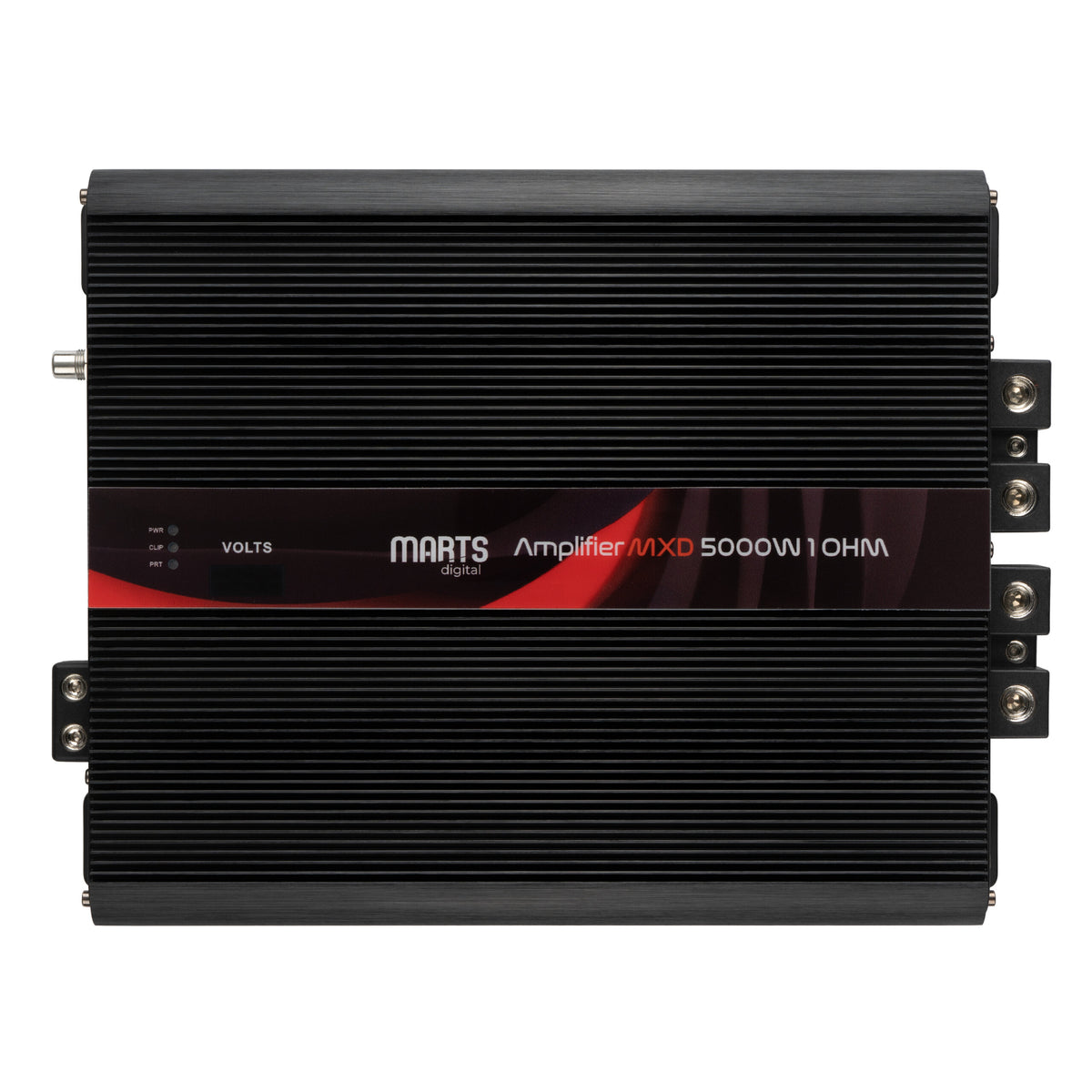

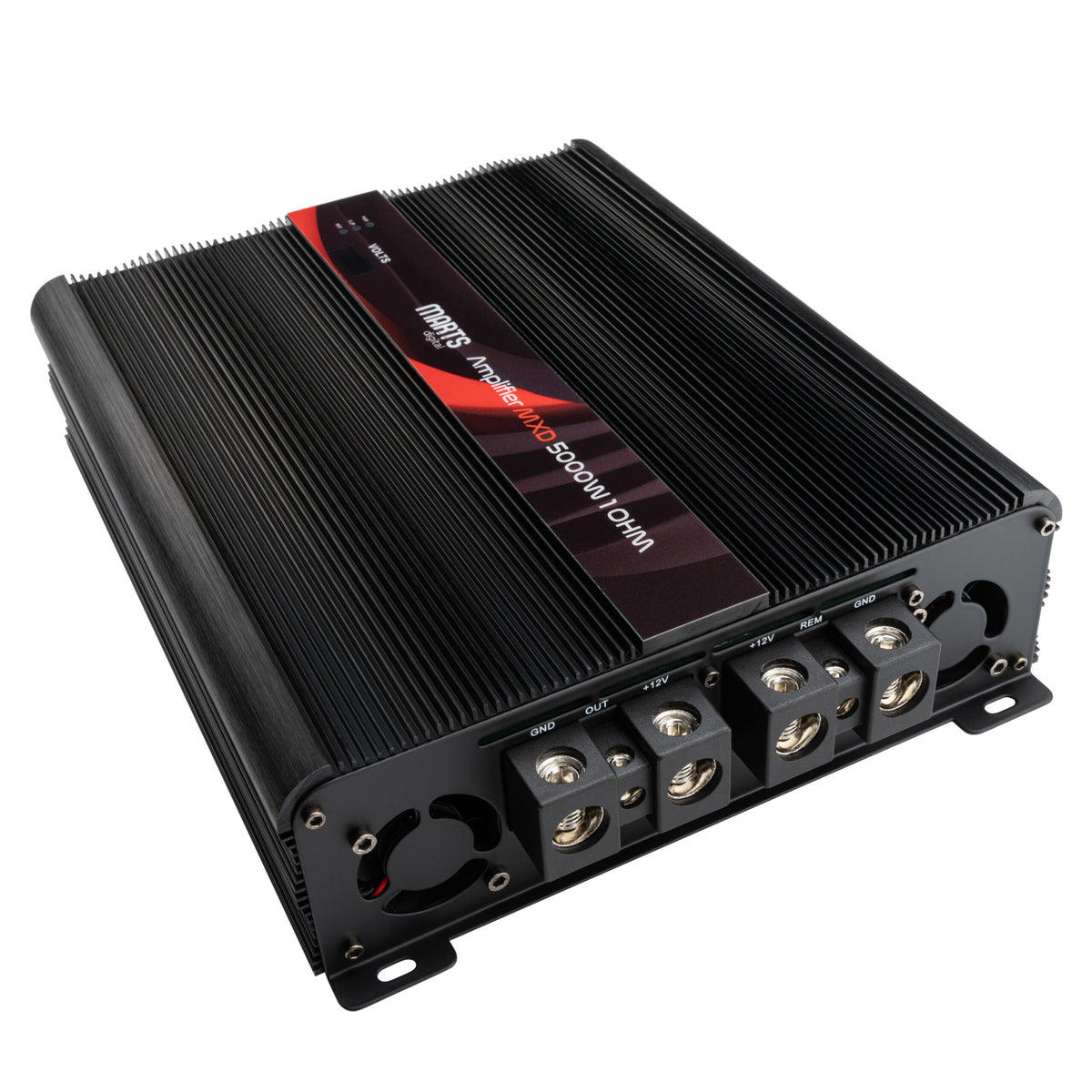

VARIATIONS: 1 OHM v2 – MONOBLOCK AMPLIFIER 1 OHM FULL RANGE V2; 2 OHMS v2 – MONOBLOCK AMPLIFIER 2 OHM FULL RANGE V2
SPECIFICATIONS:
Class D
RMS POWER at 2 Ohm 12.6V 5000W RMS
RMS POWER at 4 Ohm 12.6V 3050W RMS
RMS POWER at 2 Ohm 14.4V 5150W RMS
RMS POWER at 4 Ohm 14.4V 3100W RMS
Supply Voltage 9.5-16V
Frequency Response 10Hz-10KHz
Low pass Crossover 40Hz-10KHz
High pass Crossover 15Hz-1KHz
Bass boost 0 to 12dB(35Hz-70Hz)
Signal to Noise Ratio 95dB
Harmonic Distortion 1% THD.
