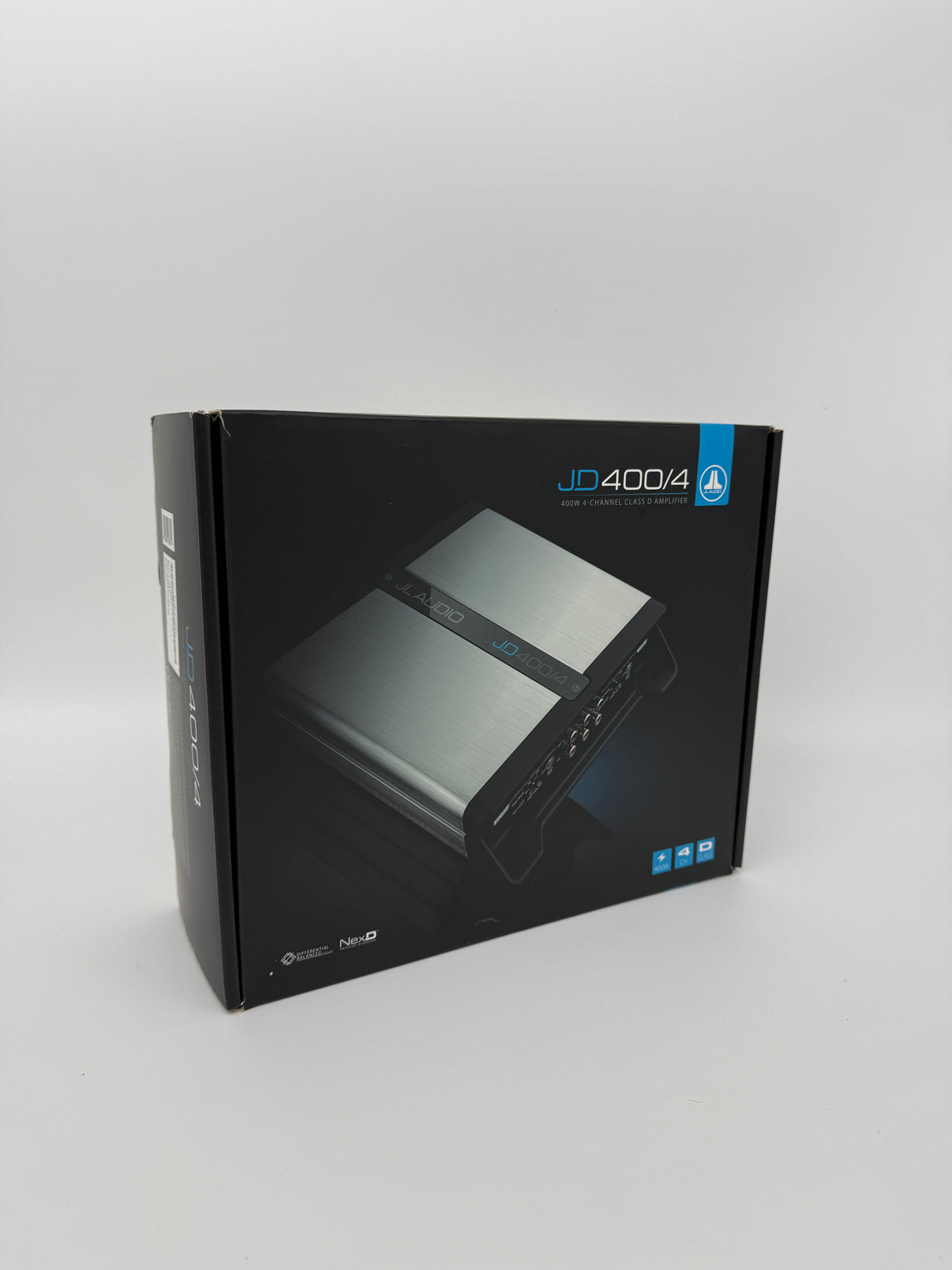

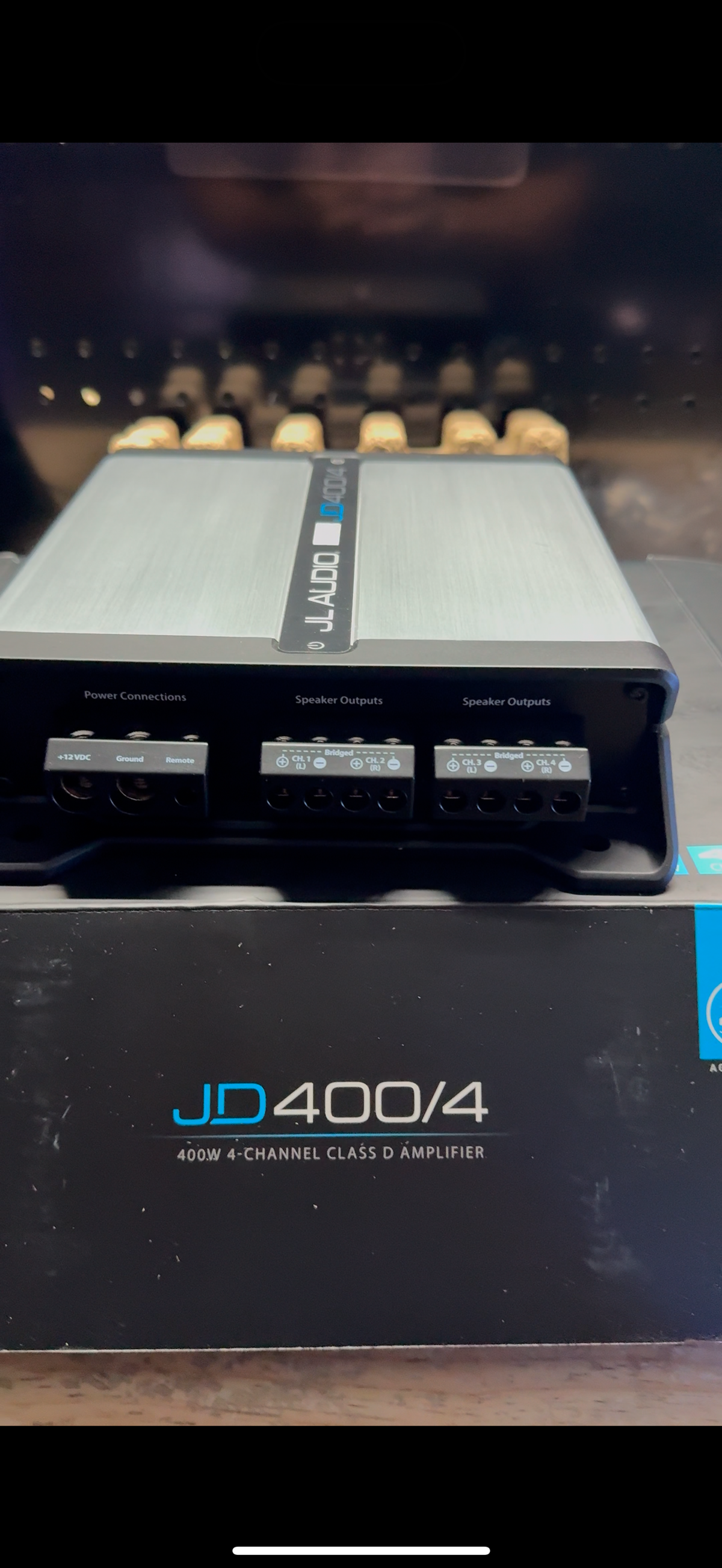

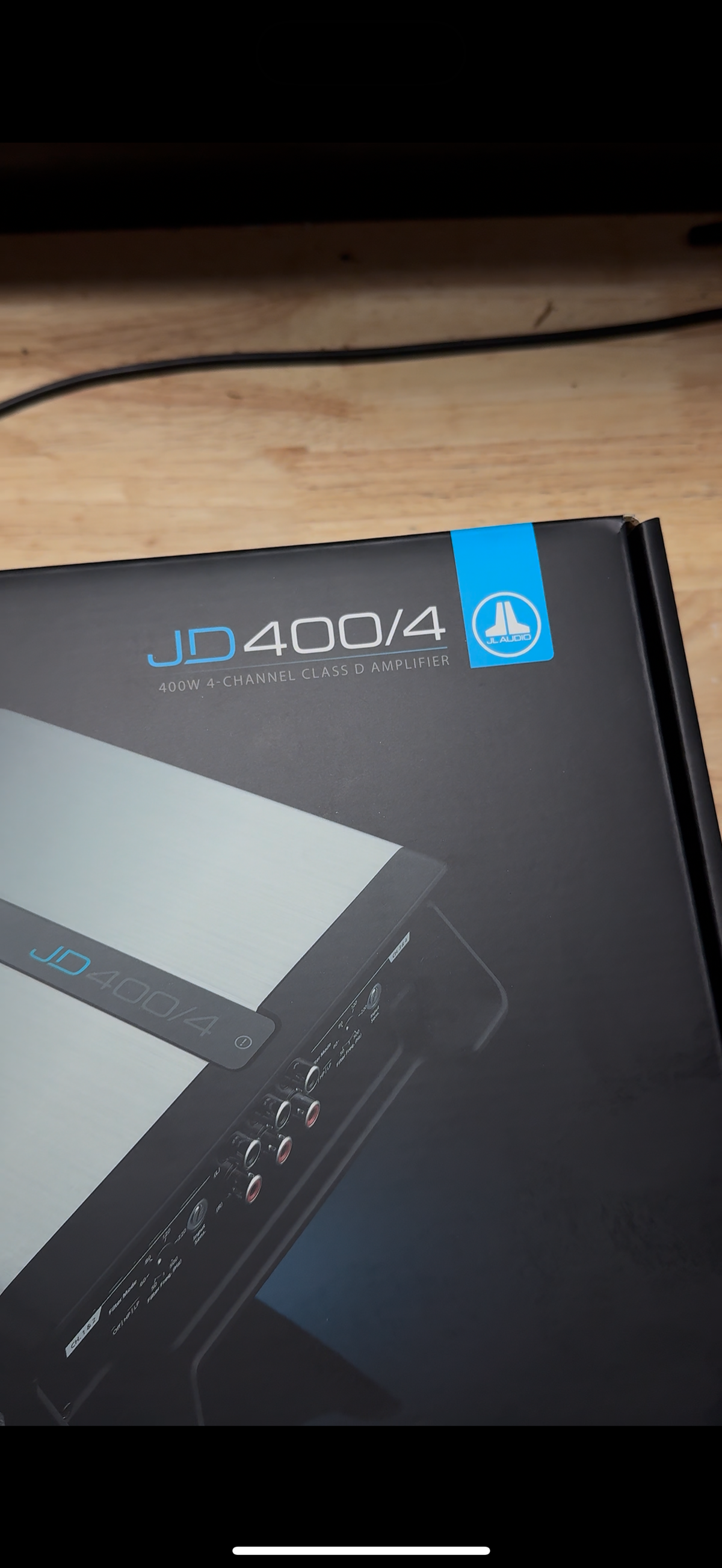

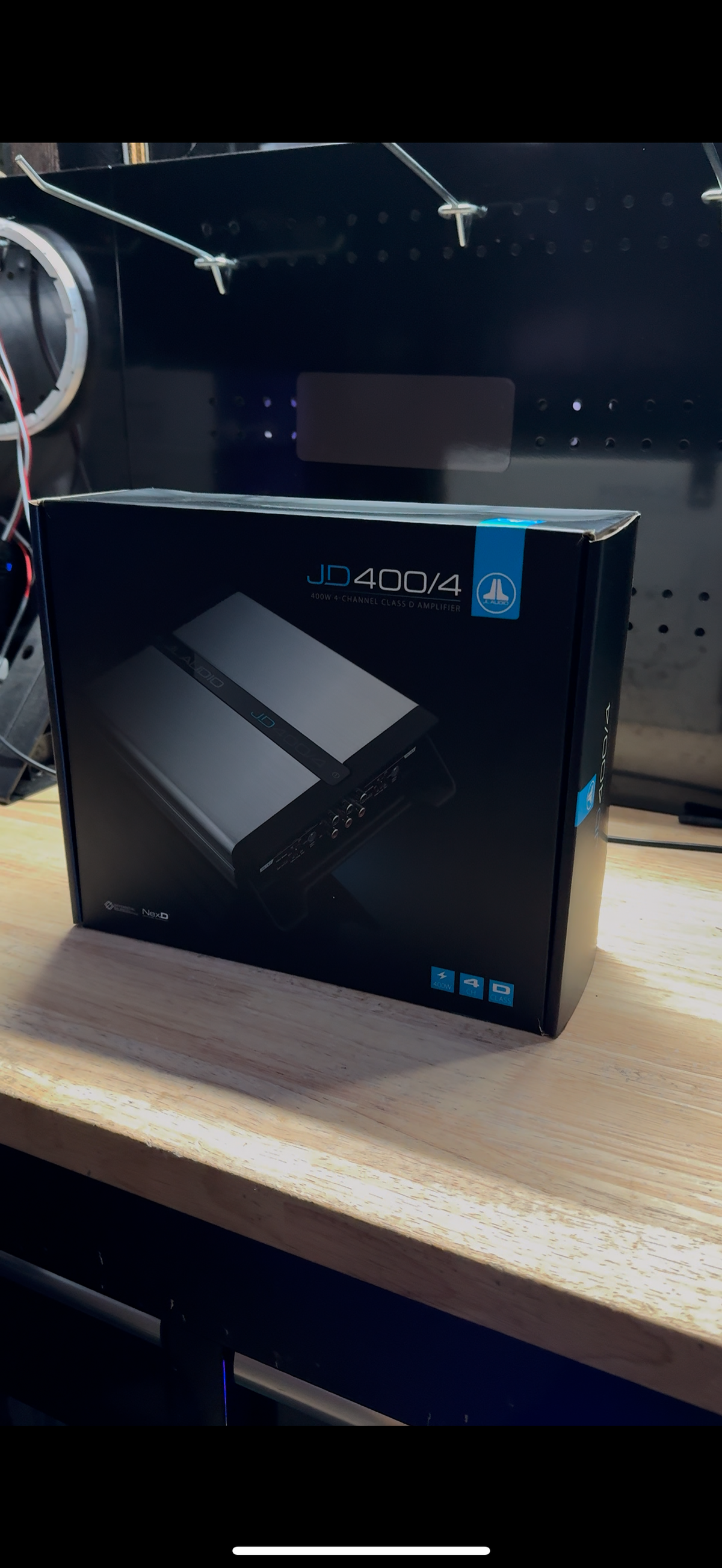

JL AUDIO JD 400/4

JL AUDIO JD400/4

AMPLIFIER CLASSClass DRATED CONTINUOUS (RMS) POWER (14.4 V INPUT @ 4 OHM < 1% THD)

75 W x 4/200 W x 2 (Bridged)

RATED CONTINUOUS (RMS) POWER (14.4 V INPUT @ 2 OHM < 1% THD)100 W x 4RATED CONTINUOUS (RMS) POWER (12.5 V INPUT @ 4 OHM < 1% THD)

60 W x 4/180 W x 2 (Bridged)

RATED CONTINUOUS (RMS) POWER (12.5 V INPUT @ 2 OHM < 1% THD)

90 W x 4

SIGNAL-TO-NOISE RATIO, REFERRED TO HIGHEST RATED POWER (A-WEIGHTED, 20 HZ - 20 KHZ NOISE BANDWIDTH): ANALOG INPUTS>104 dBSIGNAL-TO-NOISE RATIO, REFERRED TO 1 W (A-WEIGHTED, 20 HZ - 20 KHZ NOISE BANDWIDTH): ANALOG INPUTS>84 dBDAMPING FACTOR @ 4 Ω>150/50 HzDAMPING FACTOR @ 2 Ω>75/50 HzTHD+N @ RATED POWER<1% @ 2 Ω per ChannelFREQUENCY RESPONSE (+0, -1DB)12 Hz-22 kHzINPUT VOLTAGE RANGE @ RCA INPUTSSwitchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High)
