Sundown Audio
(4) Sundown M8 & Chevy Crew Cab 07-13 & 19-26 Quad 8" Subwoofer Bass Package
In stock
Product details −

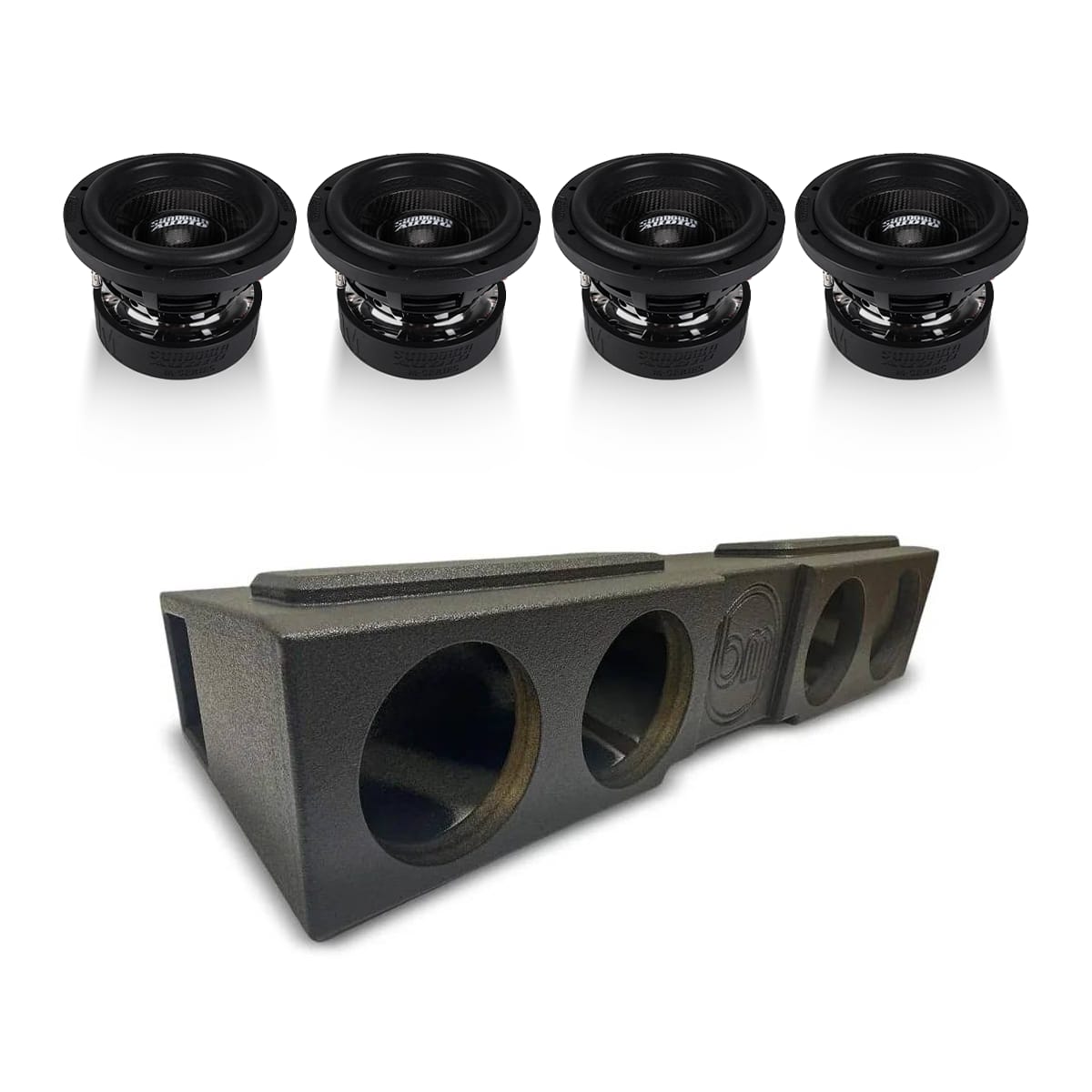

This package includes:
(1) Rhinolined Quad 8 Ported Box
(4) Sundown Audio M-8 800W RMS Subwoofers (4 Ohm or 2 Ohm)
Fits:
Chevy / GMC 2007 - 2013 Crew Cab
Chevy / GMC 2019 - 2026 Crew Cab
Tuned to 35hz
2.0 Cubic Ft.

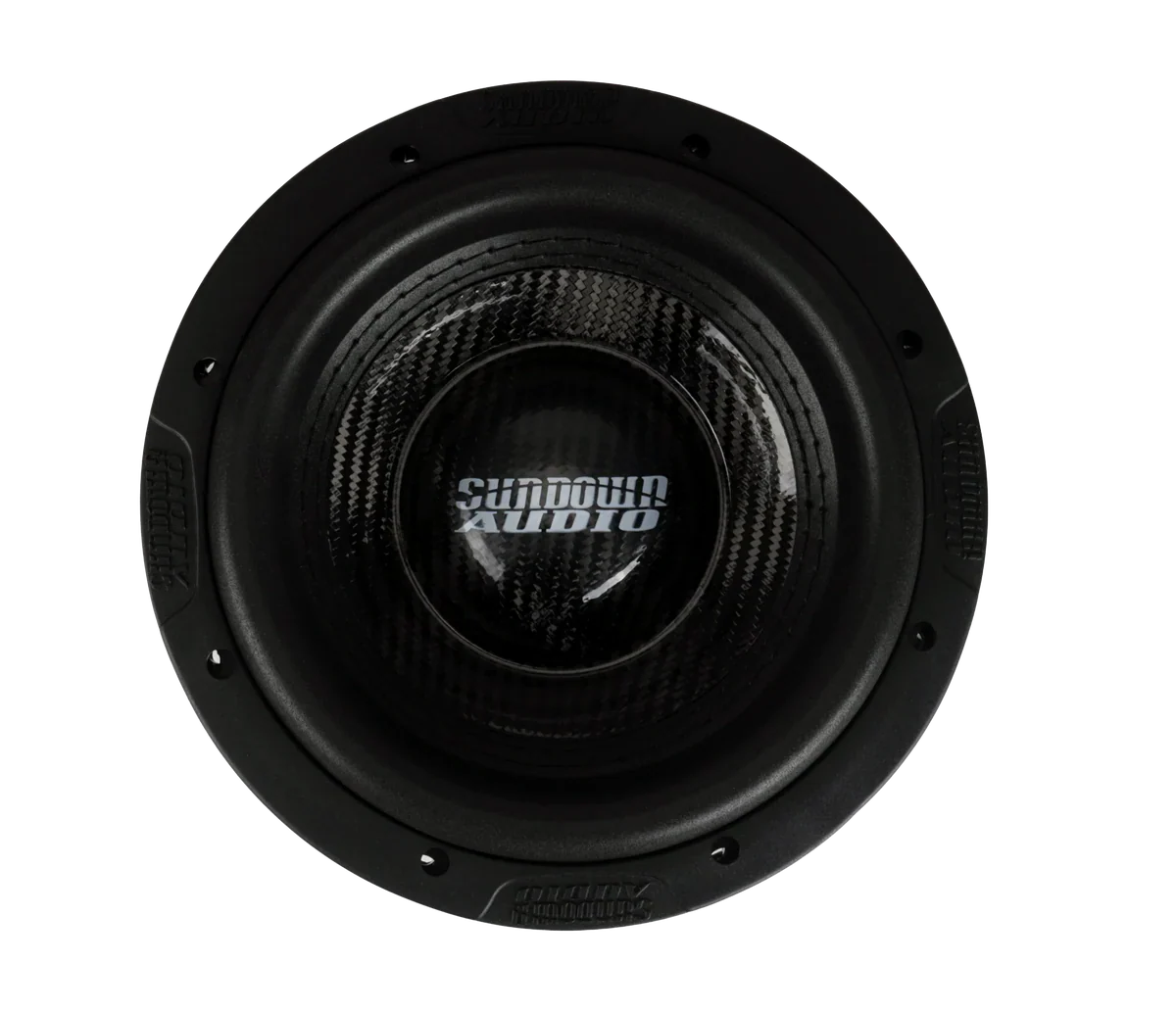

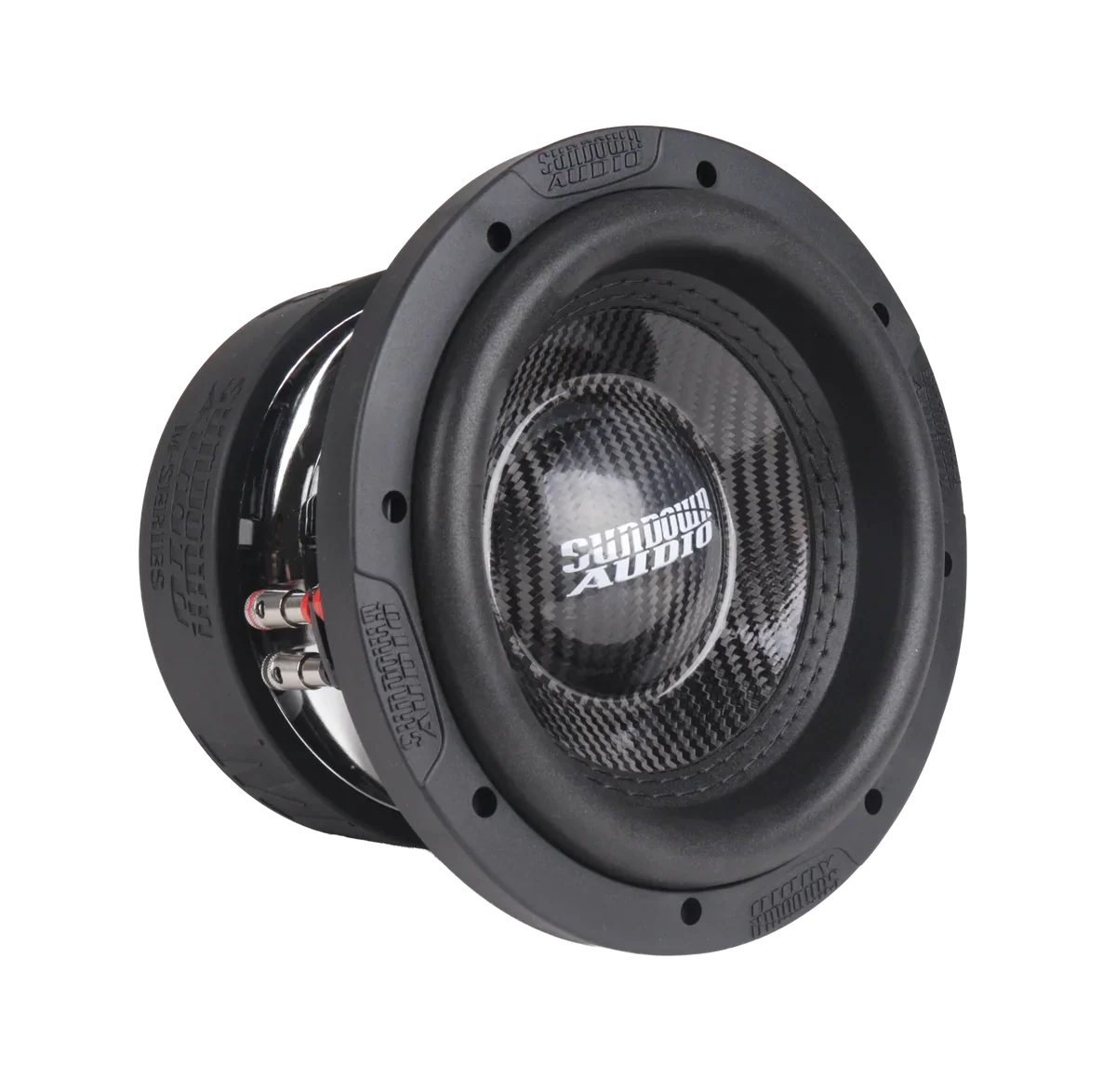

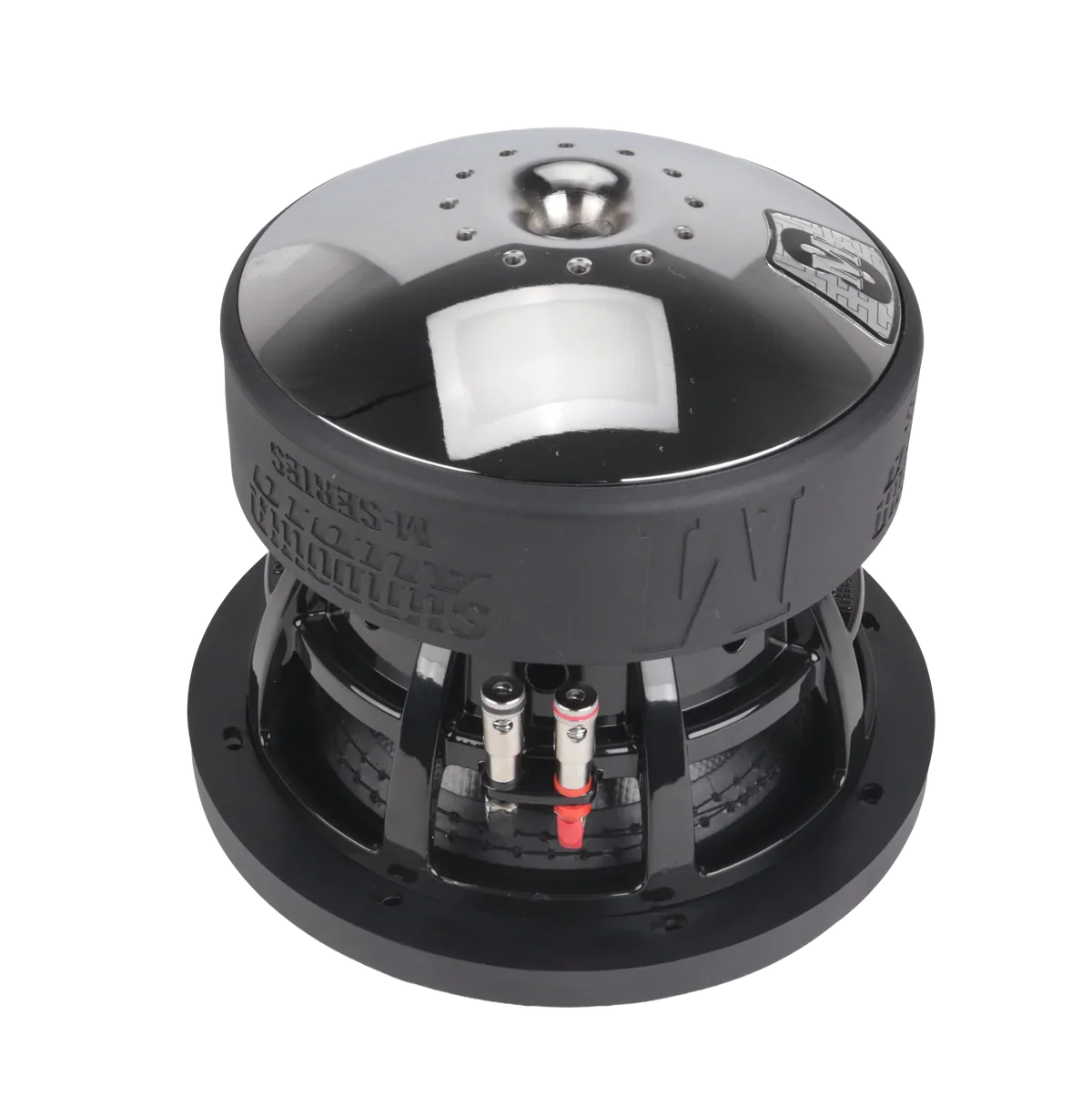

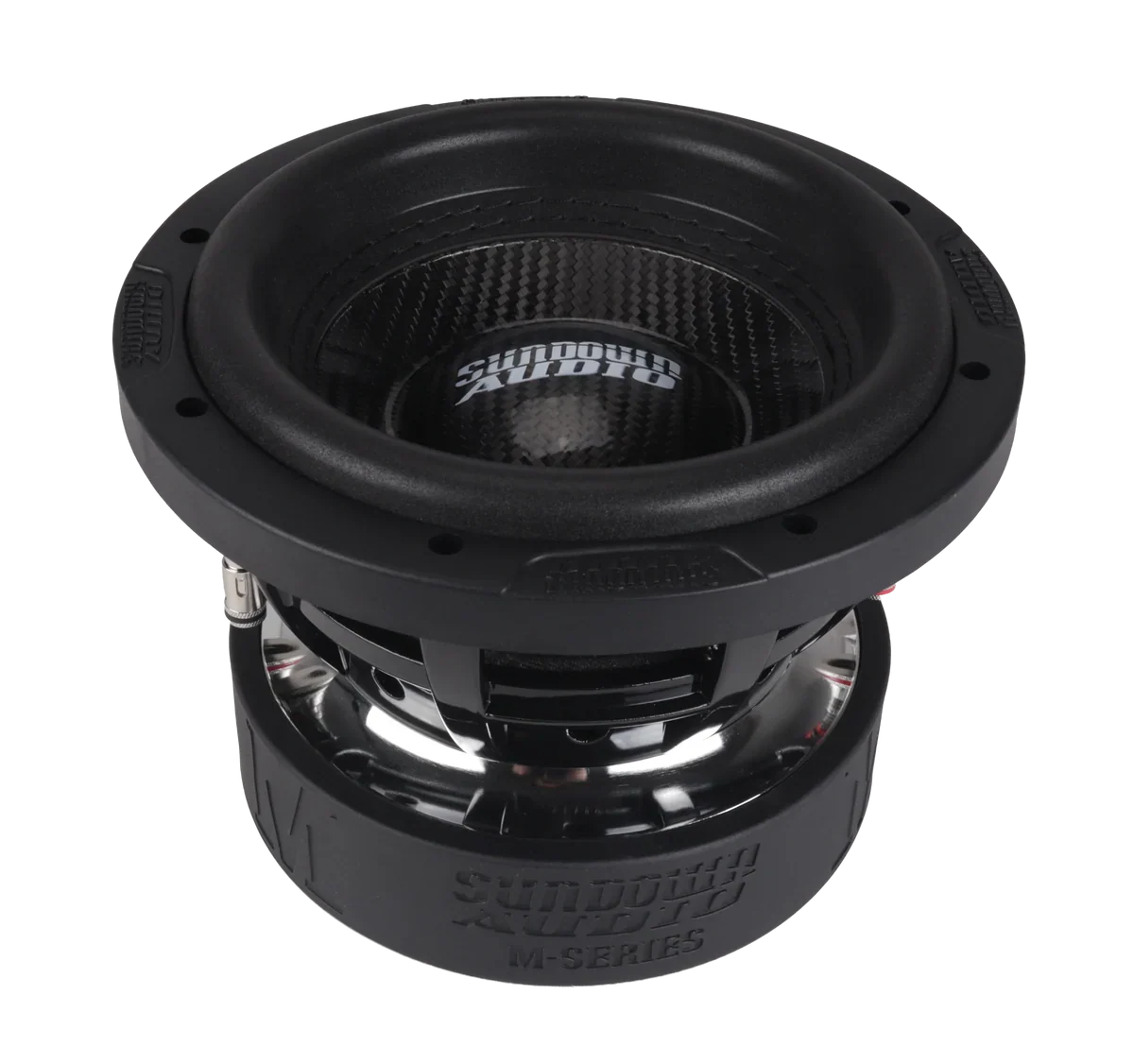

Sundown M-Series 8" 800 watts RMS Subwoofer
-
800W Watts RMS / 1600 Watts Peak
-
Dual 2 or 4 ohm voice coils
-
Optimized for small ported enclosures
-
Aluminum 2.25” voice coil former for superior heat dissipation
-
High-temperature copper voice coil wire
-
Double stitched surround
-
Carbon Fiber Cone & Dust Cap
-
Heavy-duty cast basket
-
Spring-loaded terminals accept up to 8-gauge wire
-
Stitched-on heavy-duty tinsel leads
-
High-Veloctiy Vented Pole
-
Rear gap-venting
-
18mm one-way linear x-max by 70% BL
If you want to run at a 1-Ohm load, purchase (4) Dual 2-Ohm subwoofers.
If you want to run at a 2-Ohm load, purchase (4) Dual 4-Ohm subwoofers.
The Sundown Audio M-8 is the big brother to the SA-8 v.3 model. Both the coil diameter and winding width are increased in comparison, resulting in higher power handling and more linear x-max. It features a Mid-Q which results in excellent vented and bandpass performance.
The specially designed motor is mated to a custom tooled and patented (US Patent D691595) frame. The smooth one-piece T-Yoke was FEA optimized for optimal flux transmission. The M-8 features a fully computer optimized spider & surround designed for low distortion and high levels of long-term endurance under demanding conditions. It features a thick magnet ID shorting ring to linearize and reduce inductance – thus reducing distortion even further. Every detail was engineered for phenomenal performance and pleasing aesthetics.
For any other setups you can check out our subwoofer wiring diagram
